Item

Parameters

REMARK

LASER

 SYSTEM

LASER TYPE：Xenon lamp LASER

MODEL：CLY-823LS

Wavelength: 1064nm IR/GR (wavelength optional)

Pulse width: 8ns

Frequency: 1-30Hz

Maximum energy output: 80mj

Output parameter stability: ± 3%

Spot size: square/adjustable in length

Minimum spot: 2.5um * 2.5um (optional under 50x objective state)

Spot size adjustment range: 50X MAX-24um * 24um

Min-2.5um * 2.5um (optional)

20X  MAX-60um*60um

MAX-3um*3um

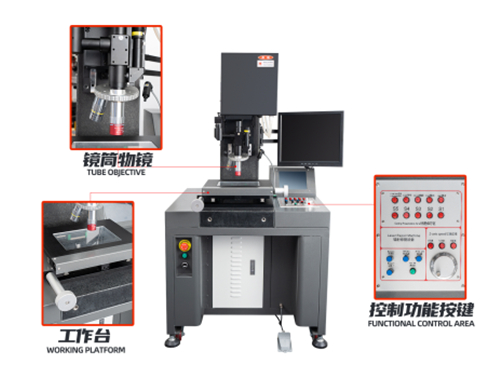

Imaging system

model：CLY-823LS

Imaging lens: IR/GR antireflective film

Objective lens: 10X (APO), 50X (NIR)

Objective switching: manual

CCD brand: Sony, Japan

CCD pixel: 2 million image capture

Display: 17 inch 1920 * 1080

software systems

Control function:

1. Laser energy, frequency, wavelength switching, spot size adjustment and storage

2. Workbench movement and processing status parameter display

Rack structure

Material: Sheet metal steel frame

External dimensions: L1800mm * W1200mm * H1500mm

Workbench size: 1100mm * 1500mm

XY axis stroke: 1200mm * 720mm

Z-axis stroke: 100mm

XYZ axis movement speed: High speed ≥ 10mm/s Low speed: 2mm/s

Manual fine adjustment: 0.25mm/260 degrees

XYZ axis movement accuracy: ± 0.02mm

Platform surface: padded with high-strength glass

Z-axis guide rail: oil-free guide rail

Appearance paint coloring: gray with glossy oil (dust-free type)

Suspension beam structure: marble structure

Display holder: adjustable for front and rear swing

Electrical part

Operating keyboard functions:

1. Shift between fast and slow 3 gears

2. XYZ axis coarse adjustment and fine adjustment

3. Illumination light source brightness adjustment

4. Start power switch

5. Start button

6. Laser energy compensation knob

7. Emergency stop

Input power supply: single-phase AC 220V 50-60Hz 10A

Application Principles

Use high-energy pulse laser to cut or fuse specific circuits in the ito conductive coating of OLED/LED/LCD, repairing the normal function of OLED/LED/LCD circuits.

Application

1. Fusion welding at the break of the circuit outside the box of the COP structure flexible screen.

2. External corrosion ITO circuit cutting and fusion of OLED screens (including COG and COF).

3. ITO circuit disconnection and fusion of TFT screen

4. ITO: Indium TinOxide, OLED/LED/LCD conductive circuit

5.COP: Chip On PI; Sheet on PI material. PI material is a flexible substrate. For example, 12Pro max, 13,13Pro, Samsung flexible screen, etc

COF: Chip On Flex; The chip is on the ribbon. For example, iPhone, max, 11pro max, 12,12Pro, and Samsung S6, S7, A51, A70, etc
